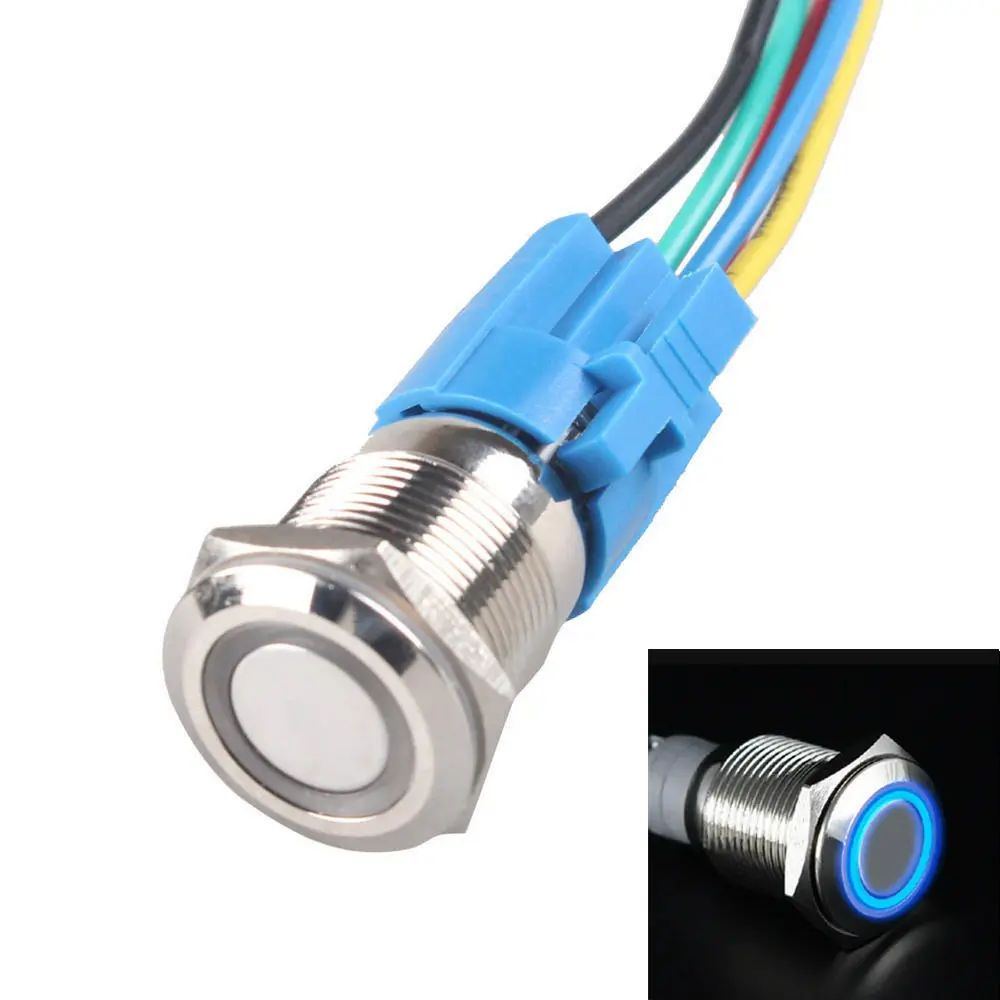

New 16mm 12V 3A Black Metal Push Button Switch Blue Led Latching ON-OFF Switch

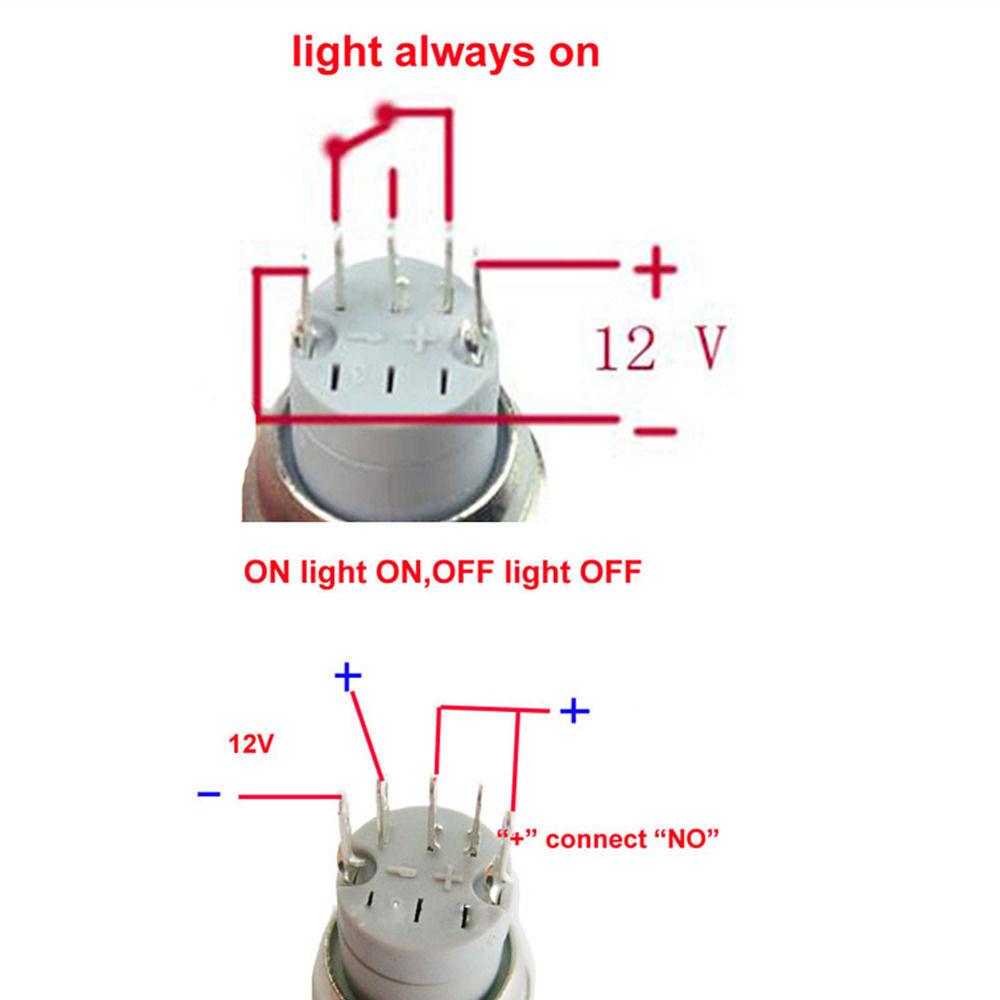

New 16mm 12V 3A Black Metal Push Button Switch Blue Led Latching ON-OFF Switch: Car & Motorbike. Buy New 16mm 12V 3A Black Metal Push Button Switch Blue Led Latching ON-OFF Switch at UK. Free delivery on eligible orders.. Hole size required 16mm 5/8" 。 Contact Configuration: 1NO 1NC 。 Latching type: push it-on£¨off£©, push it again -- off (on) 。 You can find the Wiring diagram in the picture 。 Note:。 This switch is black case. if you need chrome color switch, you can find in my store Due to photo light and Computer screen,the LED light have some color difference。 Description:。 1. It has a wide range of functions. For example, it can be applied as the switches for the additional electronical equipment inside&outside the car. (such as flashing lights, chassis lights, and dome lights)。 . For load under 3 Amp, you do not need a relay with this switch. For load above 3 Amps, we advice you to use of Automotive Relay.。 3. Easy setup. All you need is a 5/8" hole and the switch will sit in nicely.。 4. LED on all the time or only when switch is on(depending how you wire it)。 Features:。 Material: metal。 Hole size required 1mm 5/8"。 Depth inc contacts 35mm。 Lamp type:Symbol LED。 LED voltage: 1V only。 Contact Configuration: 1NO 1NC。 Operation Type:Latching。 Latching type: push it-on?off?, push it again -- off (on)。 Package Include:。 1 XBlue LED Black Case Push Switch 。 。 。
